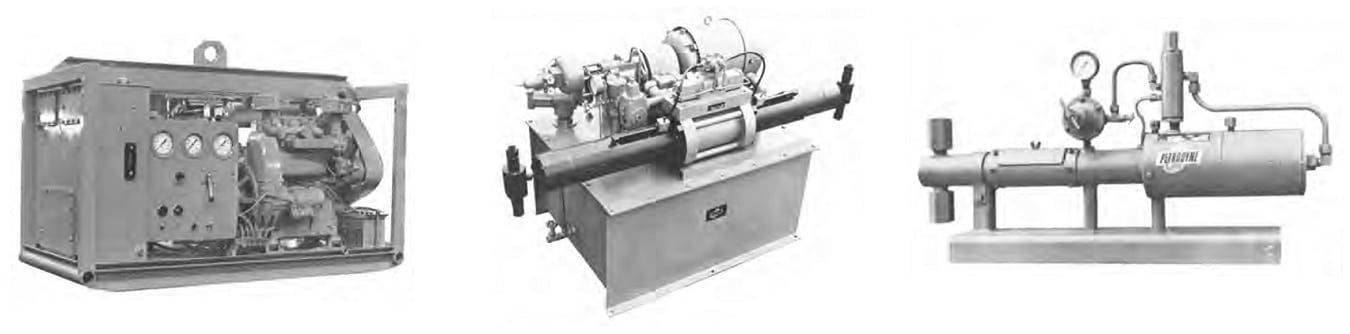

Petrodyne系列配备了高压往复柱塞泵，用于泵送苛刻的化学药品和催化剂，注脂，注水，静水压测试。 Petrodyne产品线的最大工作压力范围高达200,000 PSI。
Base Hydraulic Symbol
At A Glance
- Pumps: Injection and Catalyst
Product Details
]]>
Standard Features
请参阅随附的文档，或联系Oilgear代表或授权的经销商。
Technical Specifications
| Petrodyne Model | Hydrostatic Testing Large Pipeline | Hydrostatic Testing Plant Piping and Vessels | Hydrostatic Testing Laboratory | Chemical Additive | Oilfield Additive | LDPE Catalyst Injection | Grease Injection Wireline, etc. | Well Tubing Testing | Water Jet Cutting | Autofrettage | Maximum Pressure (PSI) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LM | X | X | X | 10,000 | |||||||
| HPT | X | X | X | X | 20,000 | ||||||
| SDA | X | X | X | X | 18,000 | ||||||
| DP-DE | X | X | 200,000 | ||||||||
| 6B | X | X | 18,000 | ||||||||
| 6B-SK-1 | X | X | 18,000 | ||||||||
| 6B-SK-2 | X | X | 18,000 | ||||||||
| 6B-SK1-6M | X | 18,000 | |||||||||
| 6B-TR2, 4 | X | X | 18,000 | ||||||||
| 6B-SK-R2, 4 | X | X | 18,000 | ||||||||
| 6B-SK2-DHT | X | 18,000 | |||||||||
| 52 | X | 30,000 | |||||||||
| PW | X | 10,000 | |||||||||
| P-47-100 | X | 60,000 | |||||||||
| CI | X | 60,000 | |||||||||
| SKG1 | X | 30,000 | |||||||||
| SK-142 | X | 26,000 |
CAD FILES
请参阅随附的文档，或联系Oilgear代表或授权的经销商。
DOCUMENTATION
Note that the Petrodyne Pump product line is an Oilgear legacy product line that is still supplied and supported by Oilgear. Please use the below documentation as reference only.
Petrodyne泵小册子 一个原始Petrodyne泵产品手册1980
Petrodyne泵小册子 的Petrodyne泵产品的OILGEAR重新发出宣传册1998
